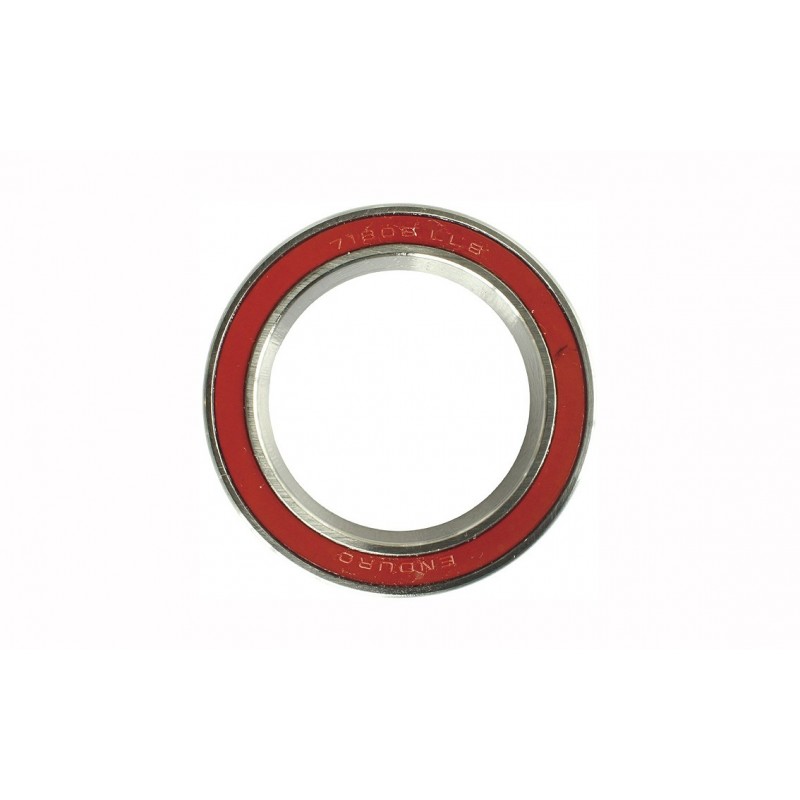

Bearing Enduro Bearings 71806 LLB ABEC 5 71806 LLB ABEC 5

71806 LLB - ABEC-5, Angular-Contact, Bottom Bracket Bearing - 30mm x 12mm x 7mm -

Angular-Contact, ABEC-5, Bottom Bracket bearing featuring 52100 High-Carbon Chromium alloy races paired with Grade 5 Balls with 90% fill, high-pressure, water-proof grease. When properly installed (black seal in for BBs) and adjusted, Enduro angular Contact (A/C) bearings engage all of the bearing's balls to spread the force over a larger surface area, minimizing wear and increasing bearing life. This is particularly important in applications like BBs, where there are constantly changing lateral loads on the bearings, which is typically the primary cause for premature bottom bracket bearing failure.

The most common use for this bearing is as a direct replacement bearing for BB30, PF30 and BB386 and most other bottom brackets with a 30mm OD spindle.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 854lbf / 3.80kN
Weight - 22.4g
